Flexibond 7360W Silicone Potting Adhesive
Flexibond 7360W is a premium two-component room-temperature curing silicone potting adhesive specially designed for photovoltaic (PV) junction boxes, electronic components, electrical modules, and power electronics. After mixing Components A and B in a 6:1 ratio, the material cures into a flexible and durable silicone elastomer that provides excellent protection against moisture, dust, vibration, temperature fluctuations, and environmental aging. Its low viscosity and excellent flowability enable easy filling of complex shapes and narrow gaps, ensuring complete encapsulation and reliable protection of sensitive electronic components. Flexibond 7360W offers outstanding electrical insulation, flame retardancy, and long-term weather resistance, making it an ideal solution for demanding solar and electronic applications.
Advantages
- Two-component room-temperature curing silicone potting system.
- Excellent adhesion to junction boxes, back sheets, electronic components, and engineering plastics.
- Low viscosity with excellent flowability for easy dispensing and gap filling.
- Superior waterproof and moisture-resistant performance.
- Low shrinkage during curing.
- Excellent electrical insulation properties.
- High flame-retardant performance.
- Outstanding weathering and aging resistance.
- Long-term flexibility and elasticity.
- Stable performance from -40°C to +150°C.
- Easy mixing and application process.
Technical Characteristics
CHARACTERISTICS
| Item | Value |
|---|---|
| A Component Appearance | White Liquid |
| B Component Appearance | Transparent Liquid |
| A Component Viscosity (mPa·s) | 5000 - 8000 |
| B Component Viscosity (mPa·s) | 50 - 300 |
| A:B Mixing Ratio (Weight Ratio) | 6 : 1 |
| Viscosity After Mixing (mPa·s) | 3000 - 6000 |
| Tack-Free Time (min) | 10 - 40 |
| Initial Curing Time (h) | ≤ 2 |
| Density (g/cm³) | 1.20 - 1.25 |
| Shore A Hardness | 20 - 50 |
| Thermal Conductivity (W/m·K) | ≥ 0.2 |
| Breakdown Voltage Strength (kV/mm) | ≥ 18 |
| Volumetric Resistivity (Ω·cm) | ≥ 1.0 × 1014 |
Application Details
- Flexibond 7360W is specifically designed for potting, sealing, insulation, and environmental protection of electronic and electrical components. Typical applications include:

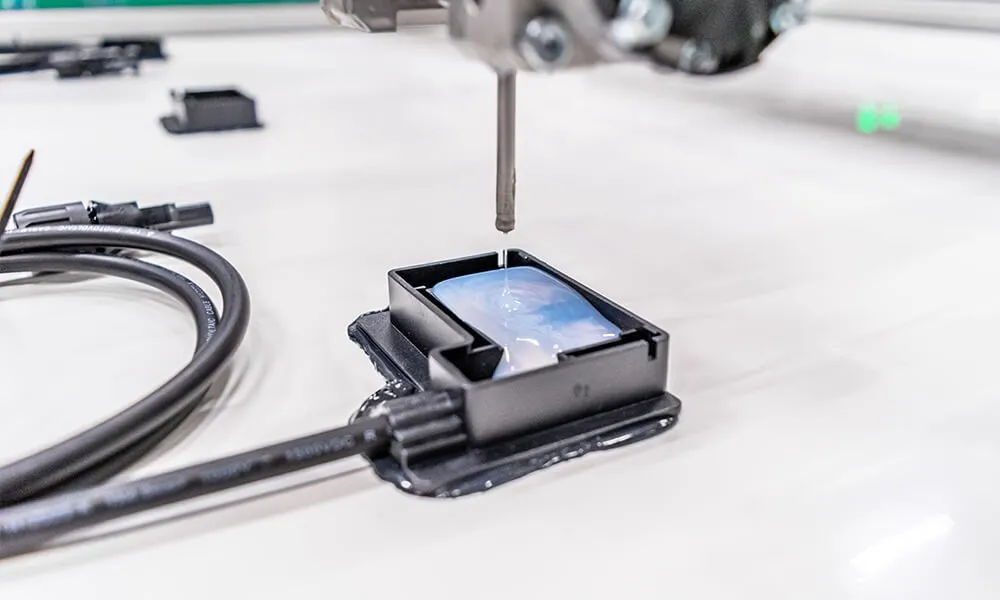

- Photovoltaic (PV) junction box potting and protection
- Precision electronic component encapsulation
- Electronic module sealing and insulation
- Electrical module protection
- LED lighting and lighting appliance potting
- Power supply encapsulation
- Printed circuit board (PCB) protection
- Industrial electronics and control systems
- Renewable energy and solar power equipment
- Its excellent electrical insulation, moisture resistance, and long-term durability make it an ideal solution for demanding photovoltaic and electronic applications.
Packaging Sizes
- Available in the following packaging options:
- 12 kg Pail
- 2 kg Jug
Storage & Shelf Life
- Store in a cool, dry environment below 25°C.
- Shelf Life: 6 Months
- Component A should be protected from direct sunlight and heat.
- Containers should remain tightly sealed when not in use.
- Store in a well-ventilated area.
Special Note & Safety
The data in this sheet are reliable information obtained under laboratory conditions. Due to differences in the actual operating environment, users should refer to these data and operating conditions for analysis and testing. Comens does not guarantee the correctness and suitability of the products sold under certain specific conditions. Comens does not assume any liability for direct, indirect or incidental damages for problems arising from the use of the product for a specific purpose. Users who encounter technical problems in the course of use may contact Gaumont's technical service department.
